Four Mast Cargo Lift SJD13-10

Product classification:Four Mast Cargo Lift

Main Features: ● High load capacity for cargo transport to higher heights ● Minimum height 150-300mm ● Simple operation and reliable ● Designed according to your demand ● Hydraulic and electric drive ●...


Four Mast Cargo Lift SJD13-10

Main Features:

● High load capacity for cargo transport to higher heights
● Minimum height 150-300mm
● Simple operation and reliable
 Designed according to your demand

● Hydraulic and electric drive
● Shot blasting and spray plastic make this lift owning long life span


Model SJD13-10
Platform Size 5.18*3.96m
Lifting Height 13m
Load Capacity 10 ton
Stop Station 3 stops

Note: cargo lifts can be customized as your request.

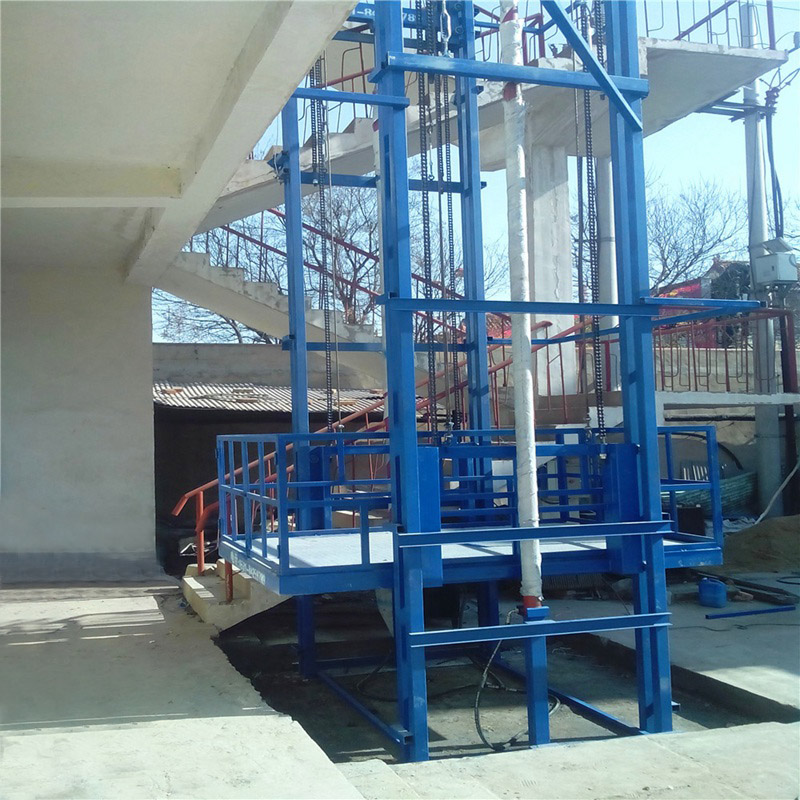

Hydraulic vertical cargo lift is used for transfer cargo between different floors by the electric and hydraulic system.It is made by strong performance steel structure and hydraulic&electric control system. The lift must be customize according to your installation environment.

Vertical indoor lifts use hydraulic cylinder as a major power. By the heavy chain and wire rope
driving, ensure the machine run safely. It through the control box on each floor to lift cargo. To prevent the cargo falling down, the wire mesh is a good choice. Without pit and machine room, it can be easy to install.

Cargo lift is customizable in loading capacityplatform size, and lifting height for your individual requirements.


Power driven:

220v, 380v, 400v. they also can be equipped with handle control, in case the power is not available that the lift can work.


Changeable items:

The control button is all put on the ground panel, but they can be changed onto the platform or controlled by a remote controller.

The power supply can be changed to Hydraulic driven power to meet the need where the electricity is not available.


Supplying capacity:

We have regular models of lift kept in our warehouse, they can be delivered as soon as the order comes. Or we manufacture the machine according to the order that the customer gives, with special design.

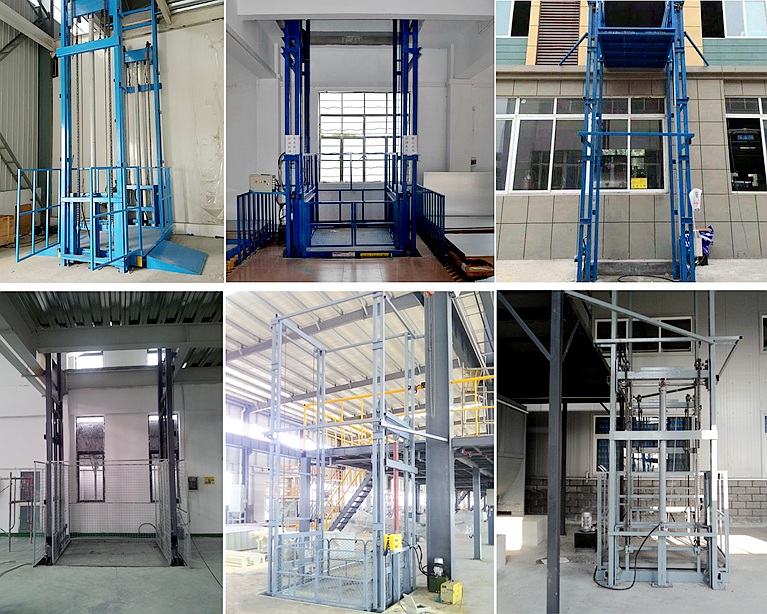

Vertical hydraulic cargo lift can be used in the factory, warehouse, shopping centers, supermarkets,airports, stations, different places. It provides you the safe, stable and efficient service for cargo lifting.


Our Services:
1. Presale service:
Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
2. In sale service:
We provide the offers as your request within 24 hours, and all your questions will be replied accordingly.
3. After-sale service:
One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.
4. Quick responses:
We have a complete service network, hotline services for 24hours and assist you to solve the problem in a short time.
5. Parts supply:
We have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
