Mobile Dock Ramp DCQY-6

Product classification:Mobile Dock Ramp

Main Features: ● Heavy Load Capacity ● Height Adjustable Support Legs ● Manual Control Hydraulic System Specifications: Model DCQY-6 Overall Size 11100mm( L)*2000mm(W)*1100mm(H) Load Capacity 6T Deck...

Details

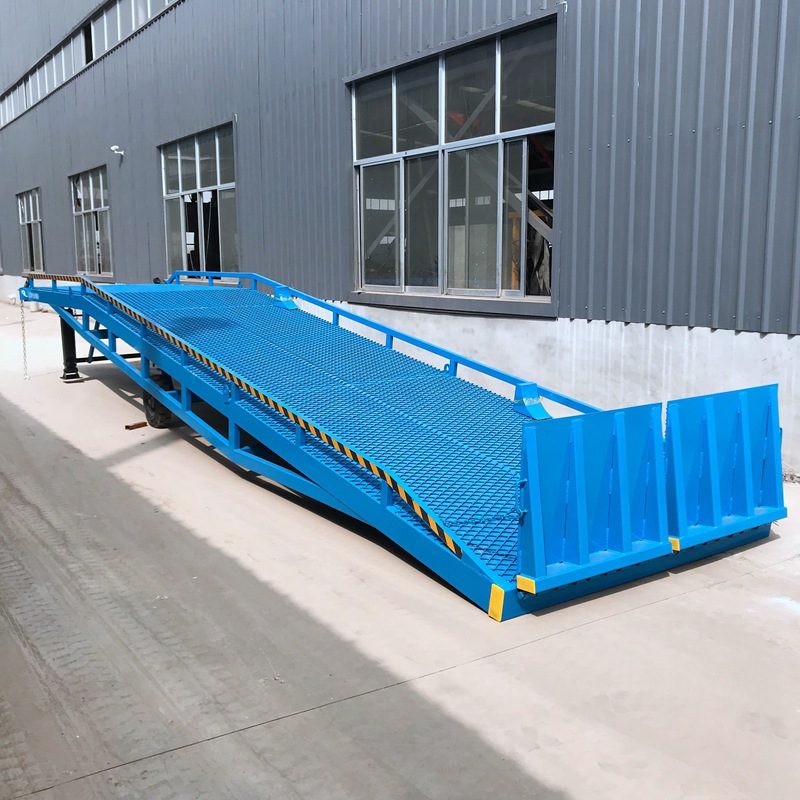

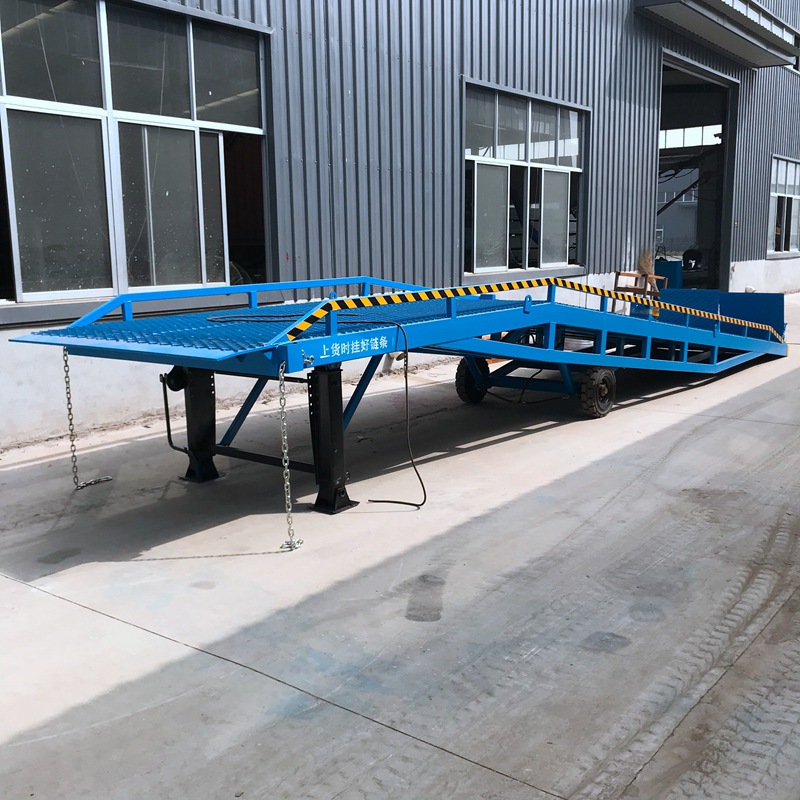

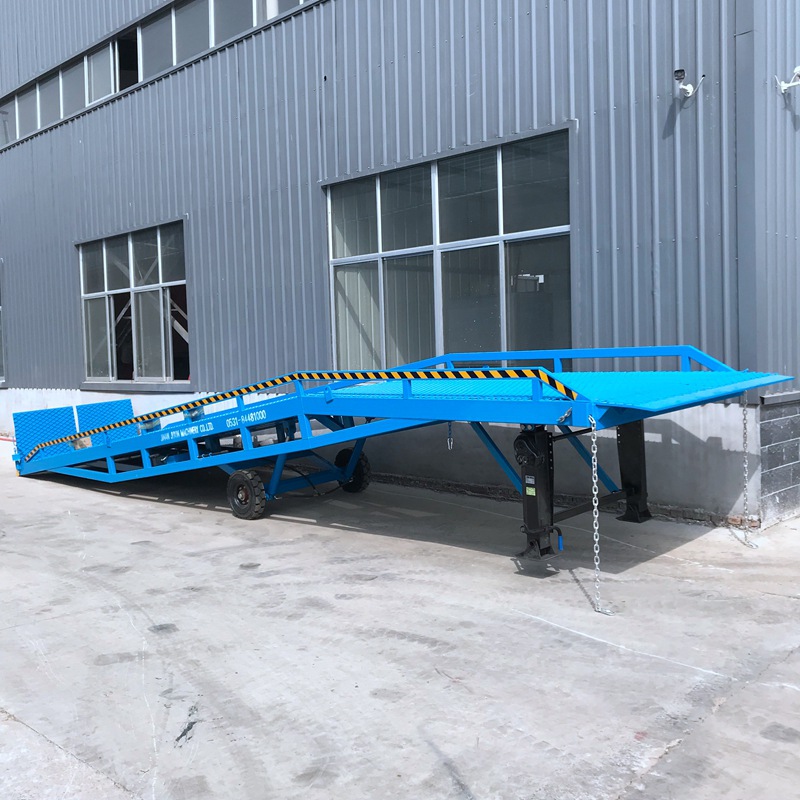

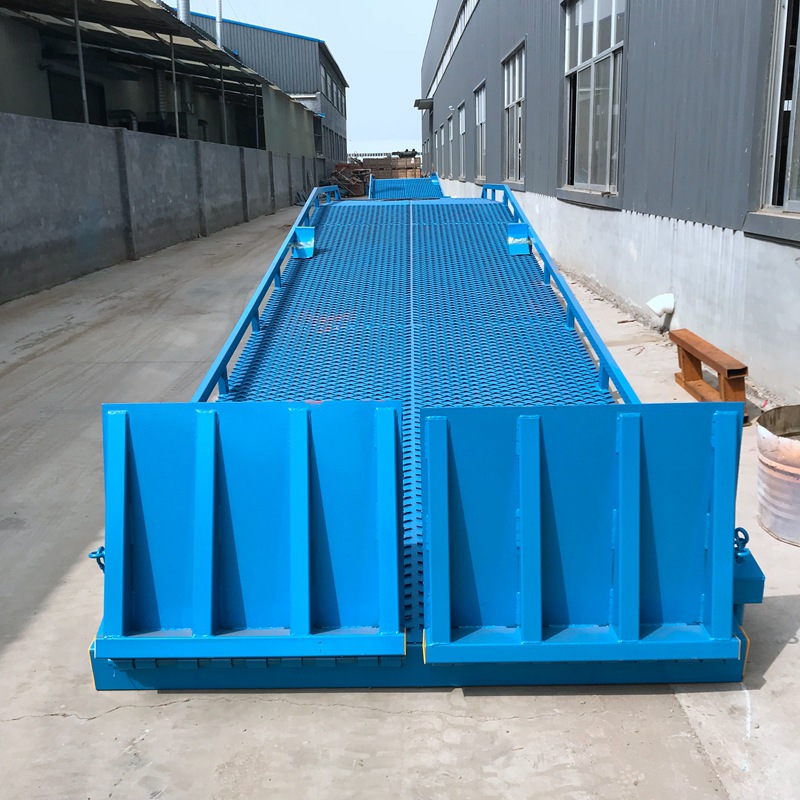

Mobile Dock Ramp DCQY-6





Main Features:
● Heavy Load Capacity
● Height Adjustable Support Legs
● Manual Control Hydraulic System

Specifications:


Model DCQY-6
Overall Size 11100mm( L)*2000mm(W)*1100mm(H)
Load Capacity 6T
Deck Slope length: 7000mm, plane length: 3000mm, front foot plate length: 400mm, back foot plate length: 700mm Upper: 8mm High-strength Steel Nets
Bottom: 3mm High-strength Steel Plate
Platform Framework 160×80×4mm Rectangular Tubes, 5 pcs main beam
Vice Beam 100×50x4mm Rectangular Tubes
Oil Cylinder  Φ80mm ×Φ50mm 2 pcs
Adjustable Range 1100-1800mm
Oil Hose 32 MPa High-pressure Double Steel Nets Rubber Hose
Seal Ring VALQUA Import Seal Element
Guardrail Height 200mm, 40×60×3mm Rectangular Tubes
Front Lip 400mm length, 16mm Steel Plate
Tires HC-YDQ10T:600-9 Solid Tires
Lifting Mode Manual Lifting or Manual&Electric Lifting or manual&Battery Lifting
Support Legs Mechanical adjustable legs, route 600mm
Color Optional, electrostatic spray
Weight 2.4 Ton

Description:

Mobile Dock Ramp is a special auxiliary equipment for loading and unloading of goods rapidly. Its height adjustment feature allows forklifts and other moving vehicles to enter into the truck  or container directly and handle the goods. The dock ramp is controlled by manual hydraulic system, so only one person could operate it conveniently. It enables you to reduce the amount of labor and raise working efficiency.

Option Configurations:


● Battery Lifting
● Electric Lifting
● Support Legs

Our Services:

1. Presale service:
Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.

2. In sale service:
We provide the offers as your request within 24 hours, and all your questions will be replied accordingly.

3. After-sale service:
One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.

4. Quick responses:
We have a complete service network, hotline services for 24hours and assist you to solve the problem in a short time.

5. Parts supply:
We have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
