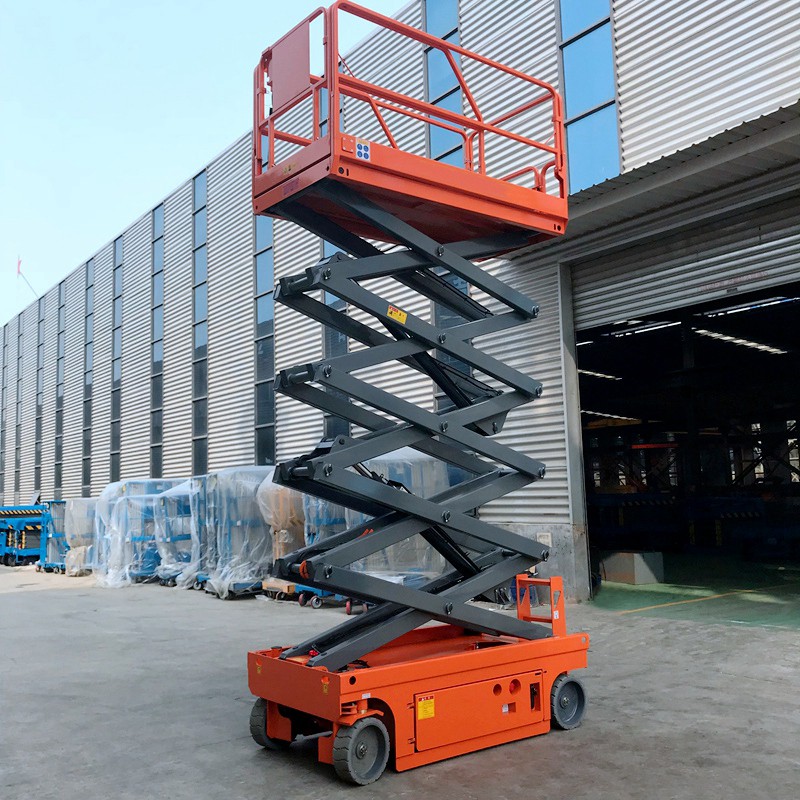

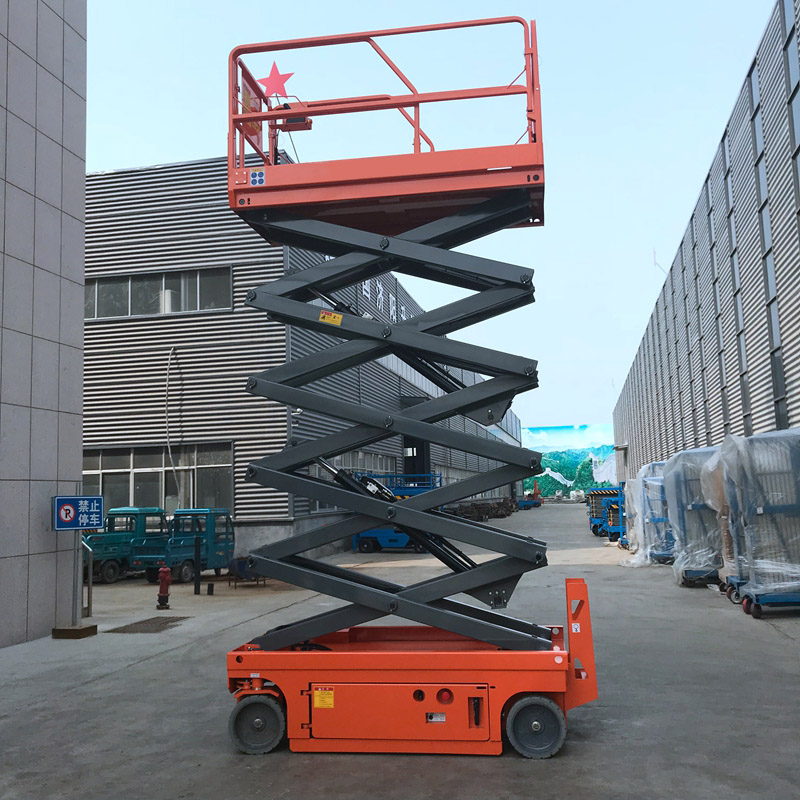

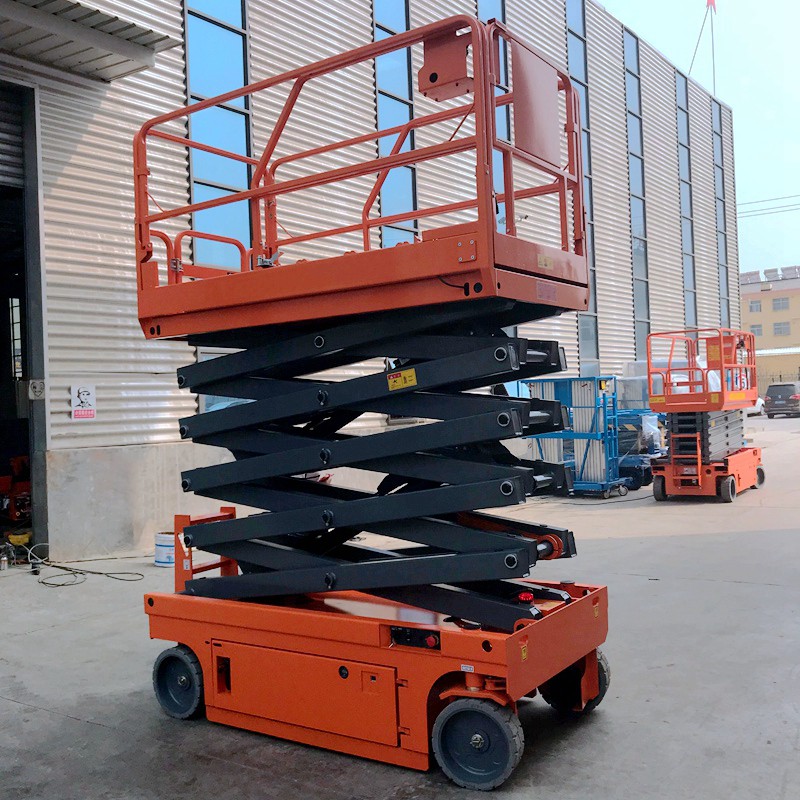

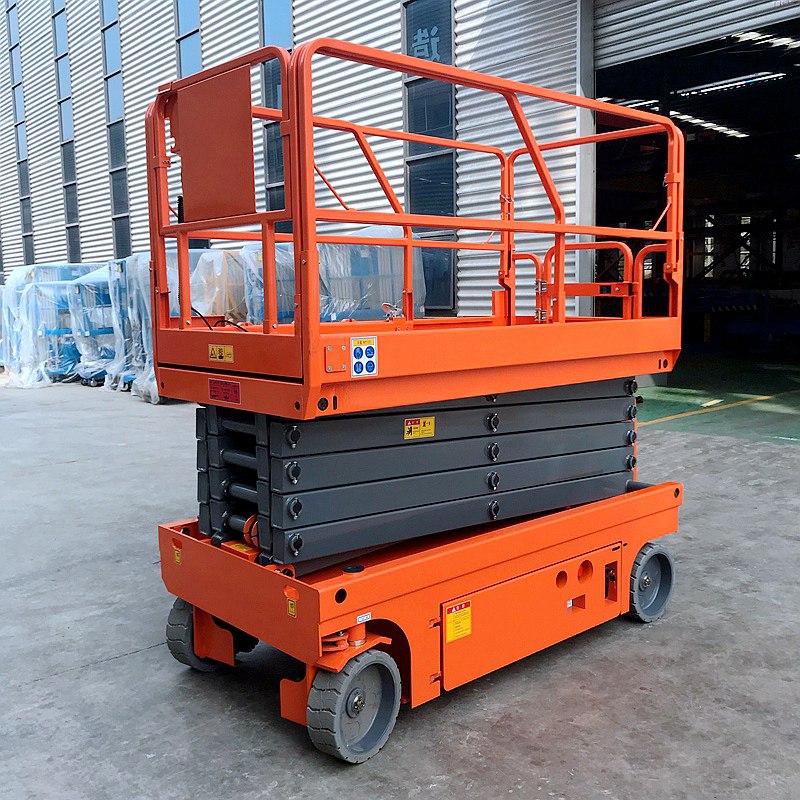

Self Propelled Scissor Lift GTJZ10HD

Product classification:Self-propelled Scissor Lift

Main Features: ● Pedal extension platform can be spread to the operating point of speed. ● Folding fence narrows the machine volume. ● 25% of the Grade ability it can climb the slope smoothly. ●...


Self Propelled Scissor Lift GTJZ10HD


Main Features:
● Pedal extension platform can be spread to the operating point of speed.
● Folding fence narrows the machine volume.
● 25% of the Grade ability, it can climb the slope smoothly.
● Rotary chassis for easy maintenance.


Model GTJZ10HD
Platform Dimension 2.27m×1.12m
Working Height 12m
Raised Platform Height 10m
Lowered Platform Height 1.91m
Load Capacity (Overall) 320kg
Distributed Capacity (Extension Deck) 113kg
Maximum Number of Persons 2
Overall Length 2.48m
Overall Width 1.15m
Stowed Height (Rails Up) 2.28m
Stowed Height (Rails Down) 1.91m
Extension Deck (Roll Out) 0.90m
Ground Clearance (Stowed) 100mm
Ground Clearance (Raised) 20mm
Wheelbase 1.87m
Turning Radius (Inside) 0m
Turning Radius (Outside) 2.2m
Lift/Drive Motor 24V/3.3KW
Drive Speed (Stowed) 3.5km/h
Drive Speed (Raised) 0.8km/h
Lift/Lower Speed 45/36sec
Maximum Drive Height Full Height
Gradeability 25%
Maximum Allowable Working Angle 2°/3°
Wind Rating 13m/s
Battery 4×6V/240Ah
Charger 24V/25A
Tire Type Solid, N/M Φ381×127mm
Overall Weight 2508kg

Self-propelled scissor lift applies to indoor and outdoor flat ground conditions. It provides users reliable safeguard according with CE standard. Hydraulic elevated work platform is the electrical self-propelled work platform with low-noise and non-pollution. The spacious platform and great
load capacity ensure widely usage.

Standard Configurations:

● Proportional controls
● Automatic pothole protection
● Self-lock gate on platform
● Drivable at full height
● Non marking tyre
● 2WD
● Automatic brakes system
● Emergency stop button
● Emergency lowering system
● Cylinder holding valve
● Onboard diagnostic system
● Tilt sensor with alarm
● All Motion Alarm
● Horn
● Hour meter
● Safety brackets
● Forklift pockets
● Folding guardrails
● Extended platform
● Charger protection
● Flashing beacon

Option Configurations:

● Overload sensor with alarm
● AC power on the platform
● Platrom work lights
● Airline to the platfrom
