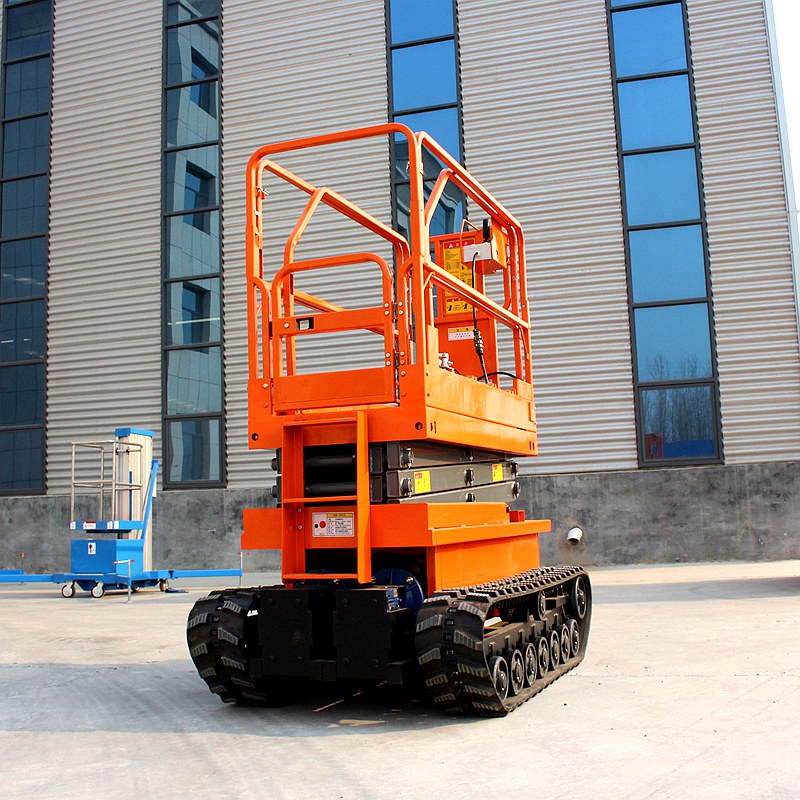

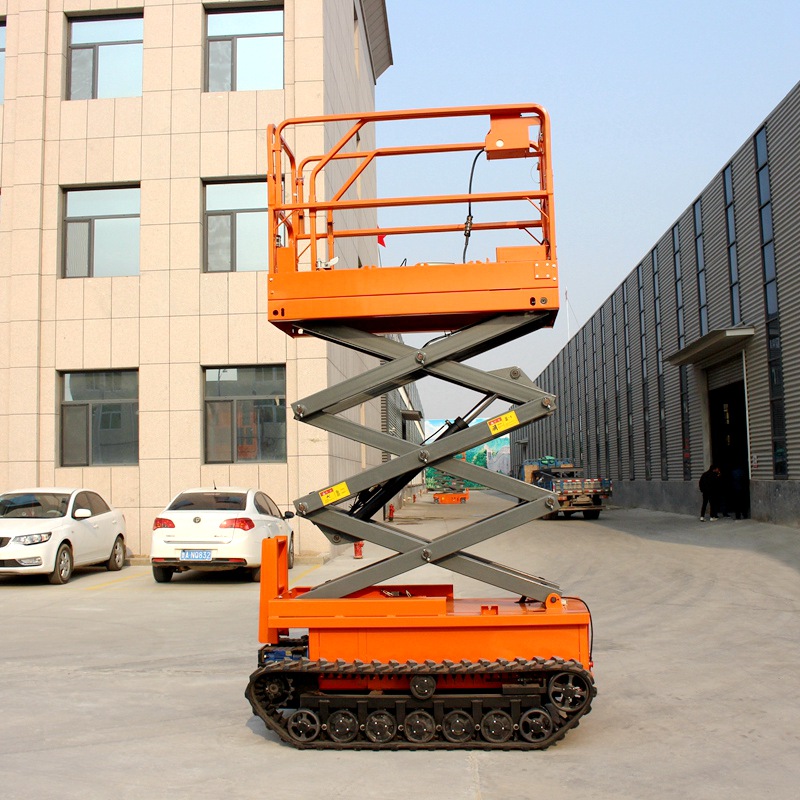

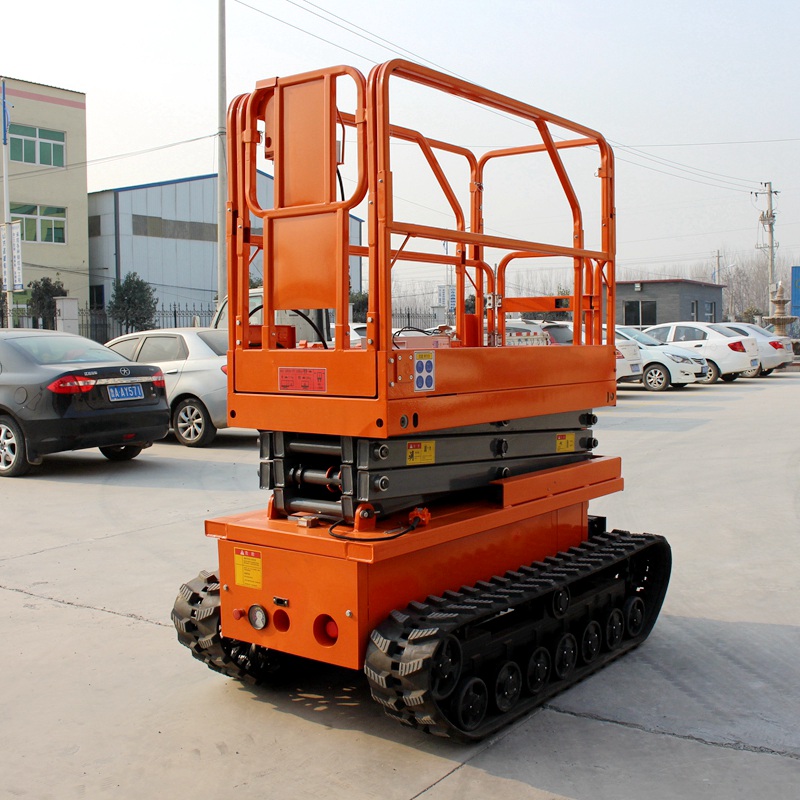

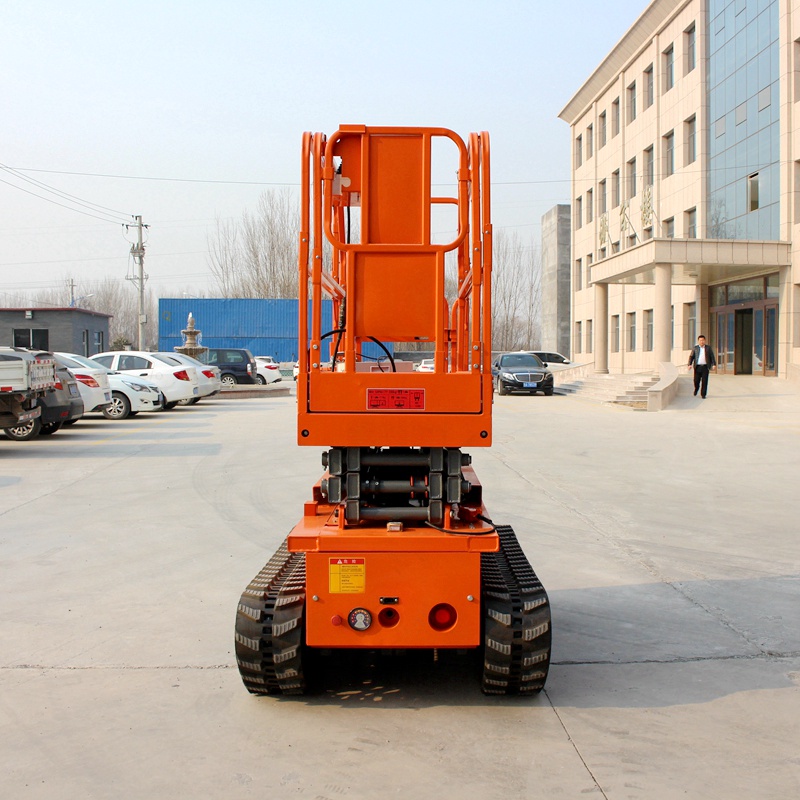

Self-propelled Crawler Scissor Lift JYPT06L

Product classification:Crawler Scissor Lift

Main Features: ● Heavy load capacity ● Platform size customized ● Can work on n ot flat ground Specifications: Items Parameters Platform Dimension 2.04m0.93m Working Height 8m Platform Heigh...


Self-propelled Crawler Scissor Lift JYPT06L

Main Features:
● Heavy load capacity
● Platform size customized
● Can work on not flat ground


Items Parameters
Platform Dimension 2.04m×0.93m
Working Height 8m
Platform Height 6m
Load Capacity (Overall) 300kg
Distributed Capacity (Extension Platform) 113kg
Maximum Number of Persons 2
Overall Length 2.35m
Overall Width 1.45m
Stowed Height (Rails Up) 2.45m
Stowed Height (Rails Down) 2.125m
Extension Platform (Roll Out) 0.90m
Ground Clearance 170mm
Turning Radius 0m
Lift/Drive Motor 48V/1.6KW
Drive Speed 3km/h
Lift/Lower Speed 3-5m/min
Gradeability 30%
Maximum Allowable Working Angle 2°/3°
Battery 4×12V/150Ah
Charger 48V/25A
Overall Weight 1700kg
Tracked self propelled scissor lift platform can automatically fast and slow walk and turn in different work conditions, which do not need artificial traction, do not need  external power supply ,and move Flexibly and conveniently. It make aerial work more convenient and efficient.
Working heights: ranging from 4m,6m,8m


Tracked self propelled scissor lift is widely used for the equipments installations and maintenance at the following places like construction sites, workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline.

Option Configurations:

● Overload sensor with alarm
 AC power on the platform
 Platrom work lights
 Airline to the platfrom

Our Services:
1. Presale service:
Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
2. In sale service:
We provide the offers as your request within 24 hours, and all your questions will be replied accordingly.
3. After-sale service:
One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.
4. Quick responses:
We have a complete service network, hotline services for 24hours and assist you to solve the problem in a short time.
5. Parts supply:
We have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
